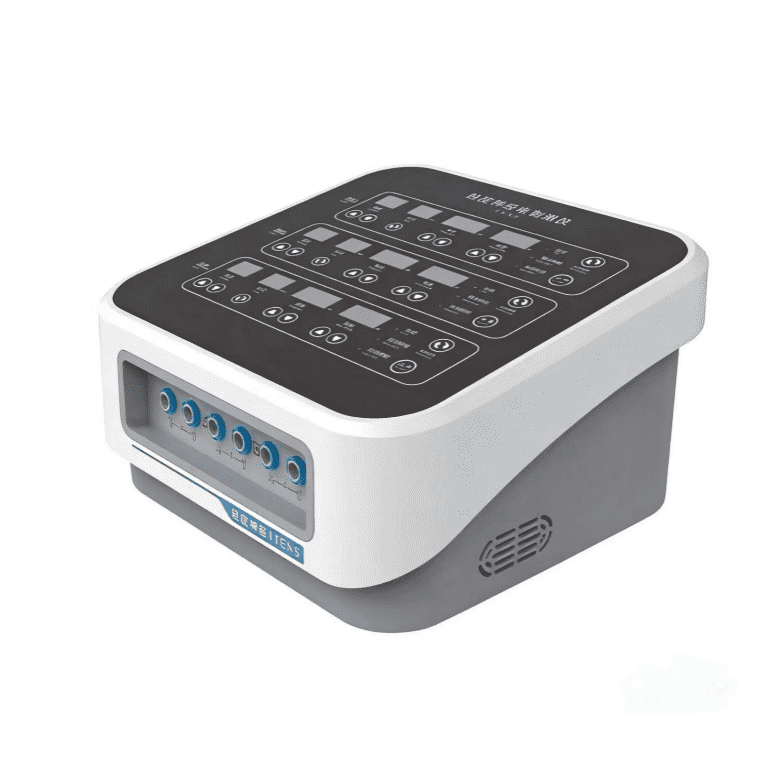

Physiotherapy clinic TENS electrotherapy device

Product Introduction

Medical TENS electrotherapy device is a low-frequency pulse machine, which acts the specific low-frequency pulse current on the human body through the skin electrode for treatment of pain-oriented diseases. This is an electrotherapy emerging in the 1970s, with good analgesic effect, achieving wide clinical application accordingly.

Principle

TENS electrotherapy stimulator uses low-frequency (also called low-frequency pulse current) which is lowered or disappeared after the voltage or current appears instantly from zero or a certain potential level based on certain rules below the frequency of 1000HZ. The method of disease treatment by use of Low-frequency electrotherapy is called low-frequency electrotherapy.

TENS electrotherapy stimulator allows the current at proper intensity and frequency to stimulate the nerve and muscle cells continuously and gently, to stimulate the body to generate morphine, and to block the pain message for pain relief. In recent years, the application of percutaneous neuroelectrical stimulation has not been limited to the analgesic effect only, where the microcurrent similar to the human body can also stimulate the tissue regeneration.

Application Range of tens electrotherapy device

1. Brain injury diseases: stroke, brain trauma, post-brain tumor hemiplegia and infantile cerebral palsy. It can be used to improve the neuromuscular function and to promote the recovery of limb dysfunction.
2. Chronic pain diseases. It has the analgesic effect.

Product Parameters

Model: K-SJD-A

Name: TENS electrotherapy stimulator

Output mode: three rectangular wave pulse output

Pulse frequency: 2-160Hz adjustable

Treatment time: 5min, 10min, 15min, 20min, 25min, 30min

Current effective value: less than 50mA

Treatment mode: continuous output, slow intermittent output, fast intermittent output

Current mode: low frequency pulse current

Product Features of TENS electrotherapy device

1. Output mode: three rectangular wave pulse output
2. Treatment mode: continuous output, slow intermittent output, fast intermittent output
3. Can treat 3 patients or 3 body parts at the same time
