Therapeutic mechanism

1. Cavitation effect: It can cause the rupture of local micro-capillaries in the tissue, stimulate new blood vessel formation, and loosen the adhesion of the tissue.
2. Piezoelectric effect: Bone cells deform under the action of force, producing tensile stress, compressive stress, and shear stress, which promote bone growth.
3. Metabolism activation effect: It can make local hyperemia, accelerate metabolism; change the permeability of cell membrane, accelerate the ion exchange process inside and outside the membrane, and accelerate the removal and absorption of metabolic breakdown products.
4. Analgesic effect: It can directly inhibit the excitability of nerve terminal cells, reduce the release of substance P, thereby alleviating pain and accelerating blood circulation at the same time, and accelerating the excretion of pain-causing factors and inflammatory substances.

Applicable scope and departments

1. Calcified or non-calcified tendinitis (such as achilles tendinitis, patella inflammation, and external/internal condyle of the humerus)
2. Plantar fasciitis;
3. Non-union and slow bone healing;
4. Ischemic osteonecrosis;
5. Osteoarthritis;
6. Chronic muscle strain (such as lumbar muscle strain, etc.);
7. Pain caused by acute and chronic traumatic diseases;
8. ED and other diseases.

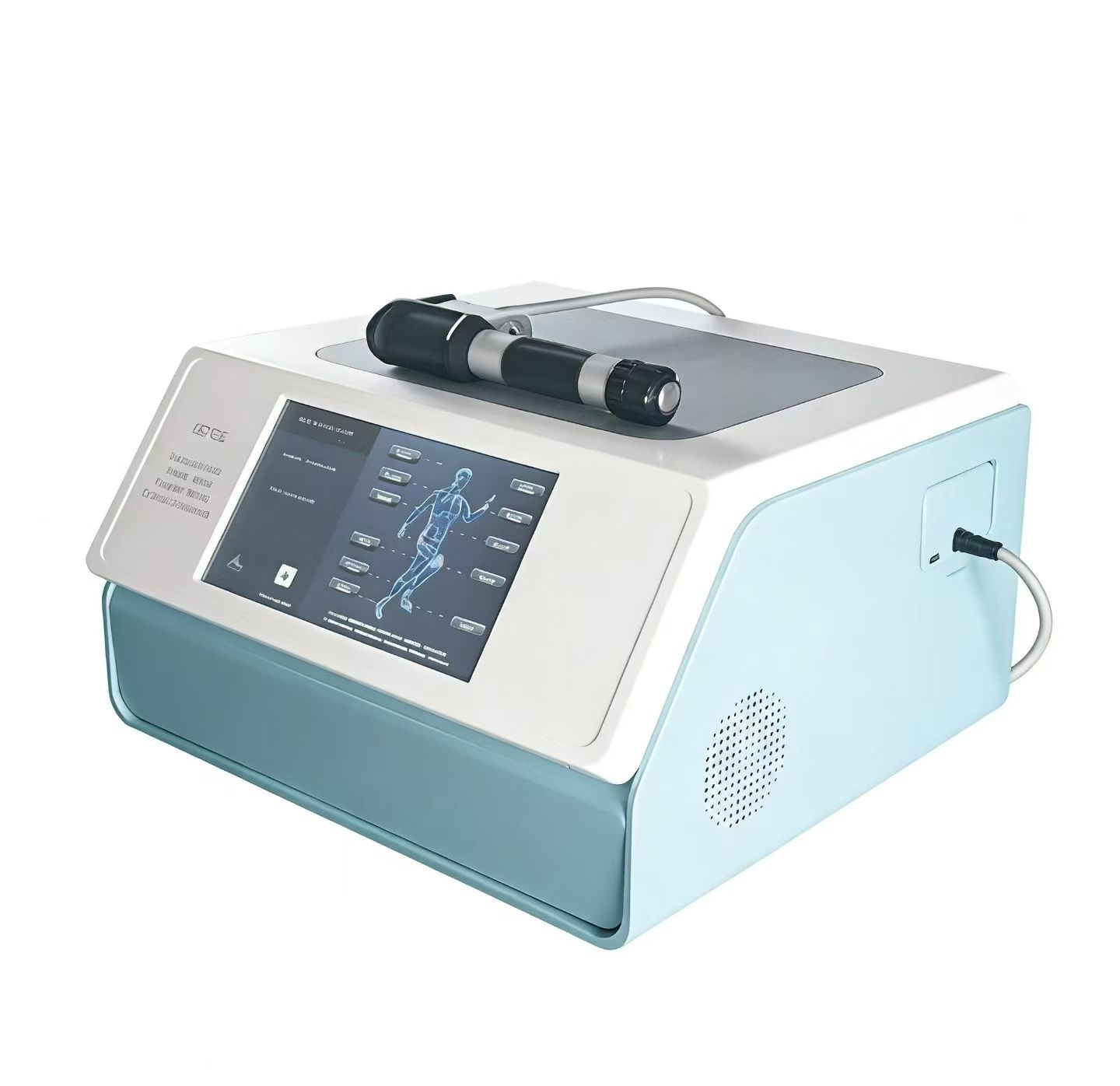

Product features of shockwave therapy machine

1. 10.2 inch true color touch screen
2. Bulit-in 45 kinds of prescriptions
3. Four types of VAS pain assessment systems
4. With step energy and step frequency working mode (highlights feature)
5. The core components are selected from global high-quality supplier
6. Six kinds of treatment probes, divided into two categories: divergent type and collimated type

1. ★Shockwave handpieces with collimated and divergent probes, seven types of treatment probes, to meet different clinical needs;① Collimated shockwave transmitters specifications: 6mm、9mm、15mm;② Divergent shockwave transmitter specifications: 15mm、20mm、25mm、35mm
2. ★Vibration handpiece is with three types of vibration transmitters, transmitters size: 10mm, 25mm, 40mm;
3. ★Different shockwave transmitters have different maximum energy density, the maximum energy density is up to 5mJ/mm2
4. ★Step pressure intensity: Intensity gradually increases from X% of the set value to the set value (X% is the step pressure), 50%-90% adjustable, 10% step size;
5. ★Built-in 4 pain assessment evaluation systems: dynamic VAS, static VAS, sleep VAS, and facial expression measurement for pre- and post-treatment pain assessment. After completing the pre-treatment pain assessment and after the treatment is completed, the post-treatment pain assessment interface will automatically pop up;
6. ★There are 2 overpressure safety devices to prevent sudden pressure increases in air compressors under normal and single fault conditions;
7. ★The product has software copyright;
8. Operating frequency:① Shockwave handpiece collision frequency 1 ~ 25Hz adjustable, step 0.5Hz;② Vibration handpiece vibration frequency 0.5 ~ 35Hz adjustable; 0.5 ~ 1Hz, step 0.1Hz; 1~ 35Hz, step 1Hz
9. 1～5.6 Bar adjustable, step 0.1Bar
