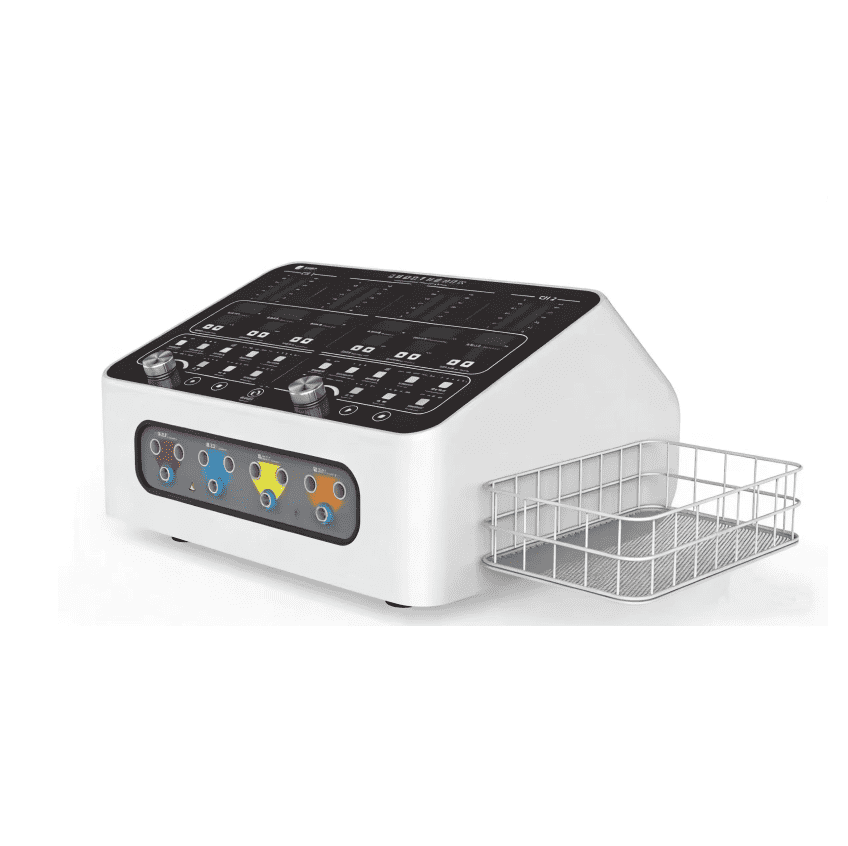

Interferential therapy unit IFT
K-GR-AI Interferential therapy unit IFT adopts three-channel medium-frequency current cross-input, forming a three-dimensional stereo interference field deep inside the human body, combined with low-frequency amplitude modulation. It achieves multi-directional, dynamic deep stimulation for more comprehensive therapeutic effects.
- 4 fixed prescriptions and 1 self-made prescription.
- Equipped with a negative pressure pump with adsorption electrode, treatment at the same time has a similar cupping function.
- Working frequency, treatment time, dynamic rhythm are all adjustable
Physiotherapy clinic use interferential therapy unit IFT
Products Description
Interferential therapy machine adopts three-channel medium-frequency current cross-input, forming a three-dimensional stereo interference field deep inside the human body, combined with low-frequency amplitude modulation. It achieves multi-directional, dynamic deep stimulation for more comprehensive therapeutic effects.
Advantages
- Four fixed prescriptions and one customizable prescription.
- Equipped with vertical casters and drawers for convenient storage of electrode wires and electrodes.
- Features a negative pressure pump with suction electrodes, providing cupping-like functionality during treatment.
- Optional accessories include suction electrodes and adhesive electrodes for different treatment needs.
- Offers six waveform settings: unidirectional sine wave, unidirectional square wave, unidirectional triangular wave, bidirectional sine wave, bidirectional square wave, and bidirectional triangular wave.
- Includes built-in protections such as output channel open circuit and short circuit protection functions for enhanced safety during treatment.
Effect of interferential therapy machine
- Analgesia: Inhibits pain signal transmission and improves local blood circulation to relieve acute and chronic pain (e.g., neck, shoulder, waist, leg pain, neuralgia).
- Blood circulation promotion: Dilates blood vessels, accelerates blood and lymphatic return, improves tissue nutrition, and reduces edema.
- Muscle rehabilitation: Excites nerves and muscles, prevents and improves disuse muscle atrophy, and relieves muscle spasms.
- Other effects: Releases adhesions, softens scars, regulates visceral and autonomic nervous functions, and assists in fracture healing.
Product parameter
|
Product name
|
Interferential therapy unit IFT
|
|
Modulation frequency
|
0~152Hz
|
|
Rated power supply
|
220V
|
|
Ambient temperature
|
+10°C~+40°C
|
|
Operating frequency
|
2kHz、3kHz、4kHz、5kHz、6kHz
|
|
Difference frequency range
|
1Hz~200Hz
|
|
Maximum output current
|
60mA
|
|
Amplitude modulation
|
0%, 25%, 50%, 75%, 100%
|
|
Dynamic rhythm
|
0 (off)、1s、2s、3s、4s、5s、6s、7s、8s、9s
|
|
Timing range
|
1min~99min
|
Intelligent Physiotherapy Equipment
Walking Rehabilitation Equipment
Upper Limb Rehabilitation Equipment
Lower Limb Rehabilitation Equipment
Whole Body Rehabilitation Equipment
About Shipping Methods
We could deliver products by sea, by air and by express according to your request, also could deliver products to your own forwarders' warehouse.
About Shipping Cost
After you make choose about which products you need, then we could know their estimated CBM and weight, and we will check the shipping cost for you.
How To Place An Order?
Step 1: If you have purchase list, you could send it to us by email or by WhatsApp, after we get your inquiry, we will make offer to you in 1-2 working days.
Step 2: After confirming which products you need, we will make PI to you for doing payment, our payment terms is 30% advance payment, after products are ready, then you pay the 70% balance payment.
Step 3: Deliver products according to your request.
Email: [email protected]
WhatsApp: +86 18951233320
Contact: Anne
Related products

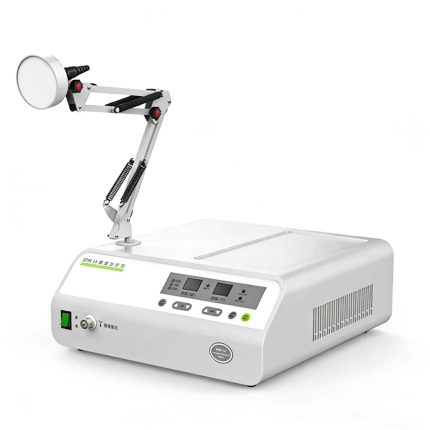

Microwave diathermy machine
SPW-1A Microwave diathermy machine
- Pain and inflammation relief: Relieves chronic pain such as arthritis, scapulohumeral periarthritis, lumbar muscle strain and tenosynovitis, and eliminates inflammation and edema of soft tissues.
- Wound healing: Promotes tissue regeneration and repair of postoperative incisions, burn wounds and ulcers (e.g. diabetic foot).
- Deep inflammation treatment: Assists in treating deep inflammations such as pelvic inflammatory disease and prostatitis, and relieves neuralgia and muscle spasms.

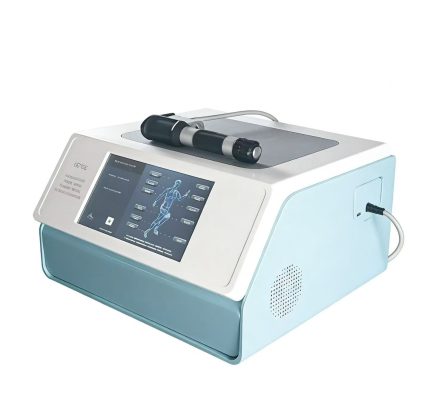

Shock wave therapy machine
HB100 hospital type shockwave therapy machine, with below features
- 10.2 inch true color touch screen
- Bulit-in 45 kinds of prescriptions
- Four types of VAS pain assessment systems
- With step energy and step frequency working mode (highlights feature)
- The core components are selected from global high-quality supplier
- Six kinds of treatment probes, divided into two categories: divergent type and collimated type

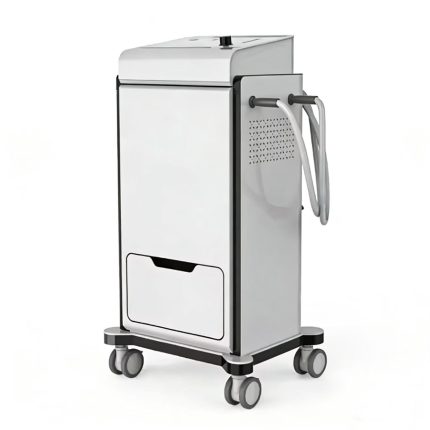

Shortwave diathermy therapeutic device for body part
K-CDB-IV shortwave therapeutic device is special for body, it is used for the auxiliary treatment of pain caused by soft tissue contusion.
With advantages
- The output power is adjustable in five levels.
- The treatment time can be adjusted in five grades.
- A beep at the end of treatment indicates the end of treatment.
- With three kinds of square silica gel electrode for choice.
TECAR therapy equipment
All-IN-ONE TECAR electrotherapy treatment equipment is with the function of TECAR, SHOCKWAVE and EMS, it is an acronym for Capacitive and Resistive Energy transfer. The use of TECAR technology is of major importance in rehabilitation therapies since it reduces pain, stimulates venous drainage in the lymphatic system, significantly reduces both muscular and back pain.

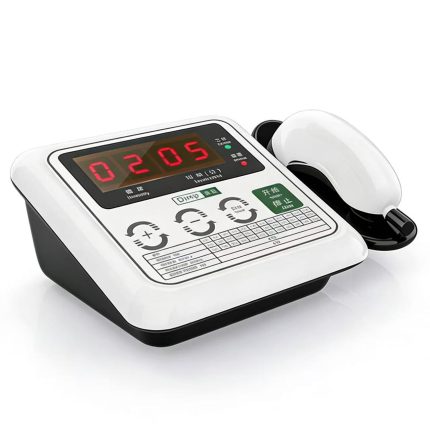

Ultrasound physiotherapy machine
