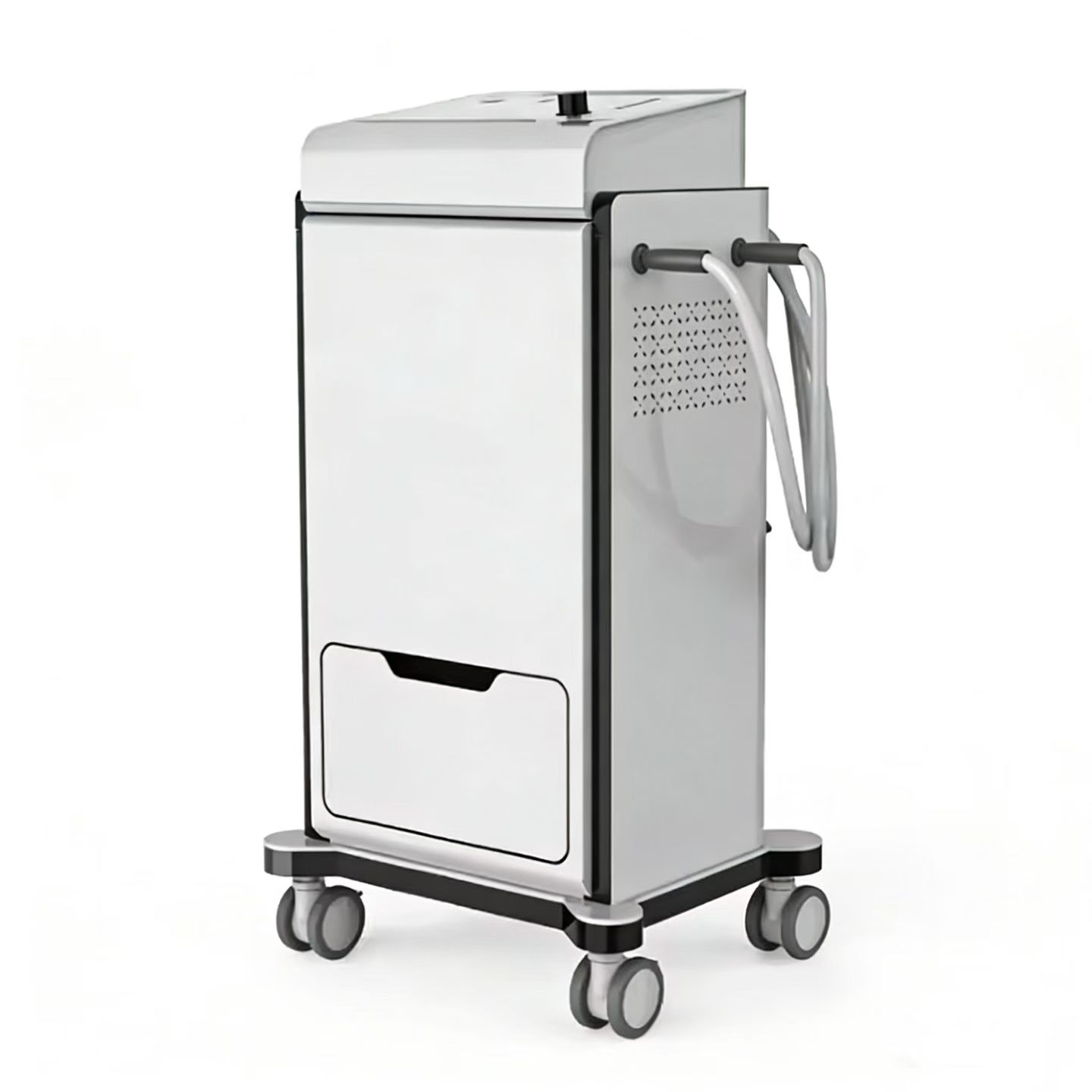

Shortwave diathermy therapeutic device for body part
K-CDB-IV shortwave therapeutic device is special for body, it is used for the auxiliary treatment of pain caused by soft tissue contusion.
With advantages
- The output power is adjustable in five levels.
- The treatment time can be adjusted in five grades.
- A beep at the end of treatment indicates the end of treatment.
- With three kinds of square silica gel electrode for choice.
Shortwave diathermy therapeutic device for body part
Products Description
The shortwave diathermy therapeutic device utilizes electron tube oscillation to generate short-waves at a working frequency of 27.12MHz. It outputs energy through capacitive electrodes, positioning the affected area between two electrode plates. This action causes the molecules and ions of the diseased part to vibrate in parallel positions under the influence of an RF electric field, resulting in thermal effects from their interaction. These thermal effects evenly heat the surface and deep tissues of the affected area, enhancing vascular permeability, improving microcirculation, regulating endocrine function, strengthening tissue metabolism, and reducing sensory nerve excitability to achieve pain relief.
Advantages of shortwave diathermy therapeutic device
- The output power is adjustable in five levels.
- The treatment time can be adjusted in five grades.
- A beep at the end of treatment indicates the end of treatment.
- With three kinds of square silica gel electrode for choice.
Scope of application
Shortwave therapeutic device is used for the auxiliary treatment of pain caused by soft tissue contusion.
Product parameter
|
Product name
|
Shortwave diathermy therapeutic device
|
|
Output power
|
20/40/60/100/200W
|
|
Operating frequency
|
27.12MHz
|
|
Pulse frequency
|
Sparse wave MF 70Hz, dense wave DF 350Hz
|
|
Modulation waveform
|
Square wave
|
|
Adjustment system
|
100%
|
|
Treatment time
|
10/15/20/25/30min
|
|
Main machine
|
430mm*330mm*830mm
|
|
Output line length
|
1100mm
|
|
Service life
|
8 Years
|
