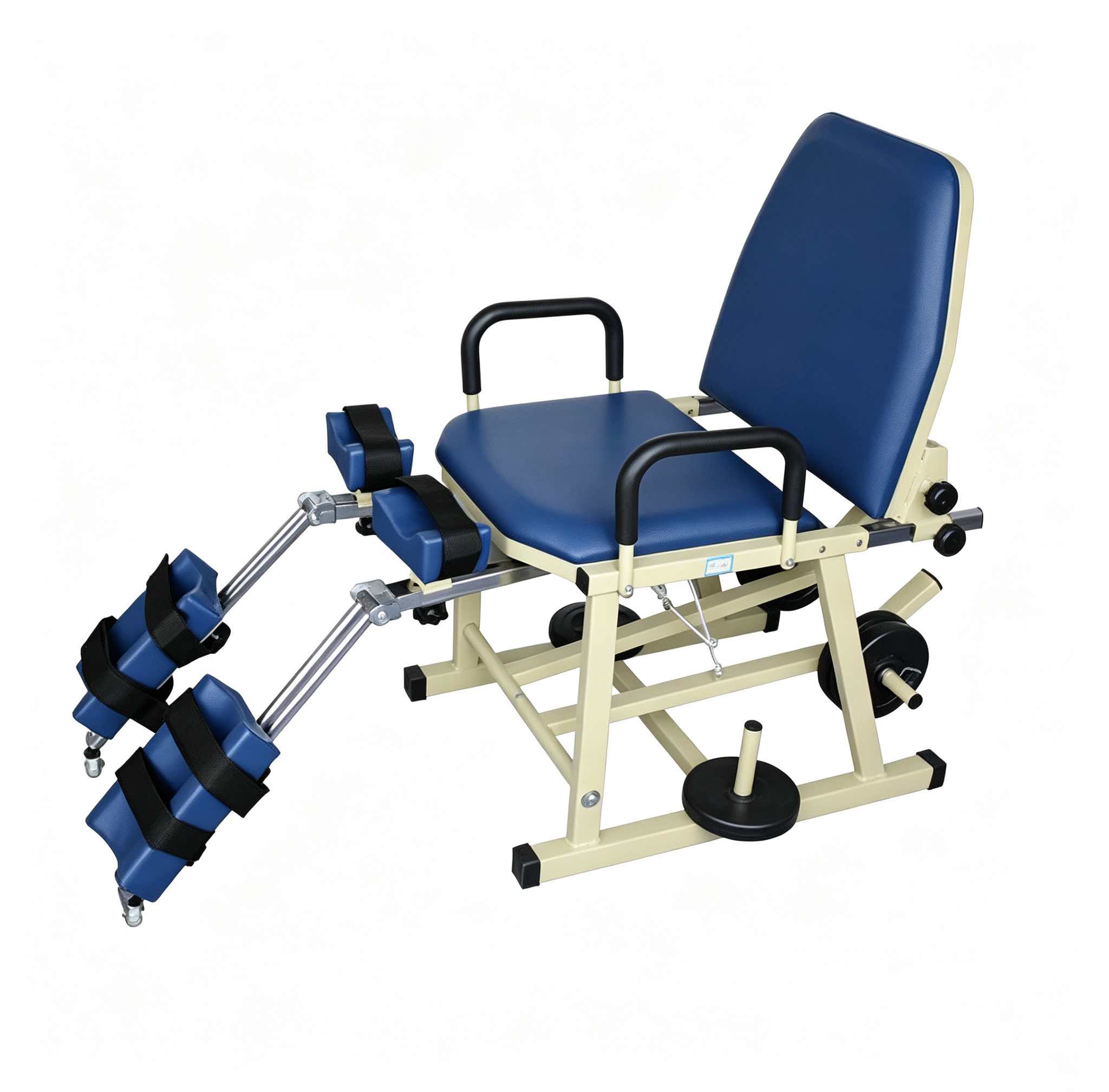

Hip joint exercise rehabilitation chair

Type: rehabilitation equipment

Application:
It is used for abduction and adduction muscle training for hip joint.
It consists of a backrest, a seat, a leg cushion and a fixing belt, a lower limb support, a caster, and weight blocks.

Specification:
Name: Hammer-type Hip Joint muscles Training Chair
Model: SH-KGJ-1
Size: 138x120x98cm
Height of the seat: 50cm
Seat cushion width: 48cm
Lower limbs supporting frame length: 55cm
Adjustment angle of lower limbs supporing frame: 0 ° – 50 °
Loading capacity for seat: 135kg
Loading capacity for backrest cushion: 70kg

Features
1. It uses the nylon rope to pull the pulley so as to make the whole leg moving accordingly, which make the training more safe.
2. The training method can be adjusted cushion to choose sitting or horizontal.
3. The weight blocks are equiped with springs which make them easier for unloading.
4. the back cusion is made of high resilience sponge and covered with leather.
5. the U shape pad for Thigh and calf with ties make the leg comfortabale during training. They are also can be adjusted front or back, up or down.
5. the leg’s support can be seperated from left and right.
