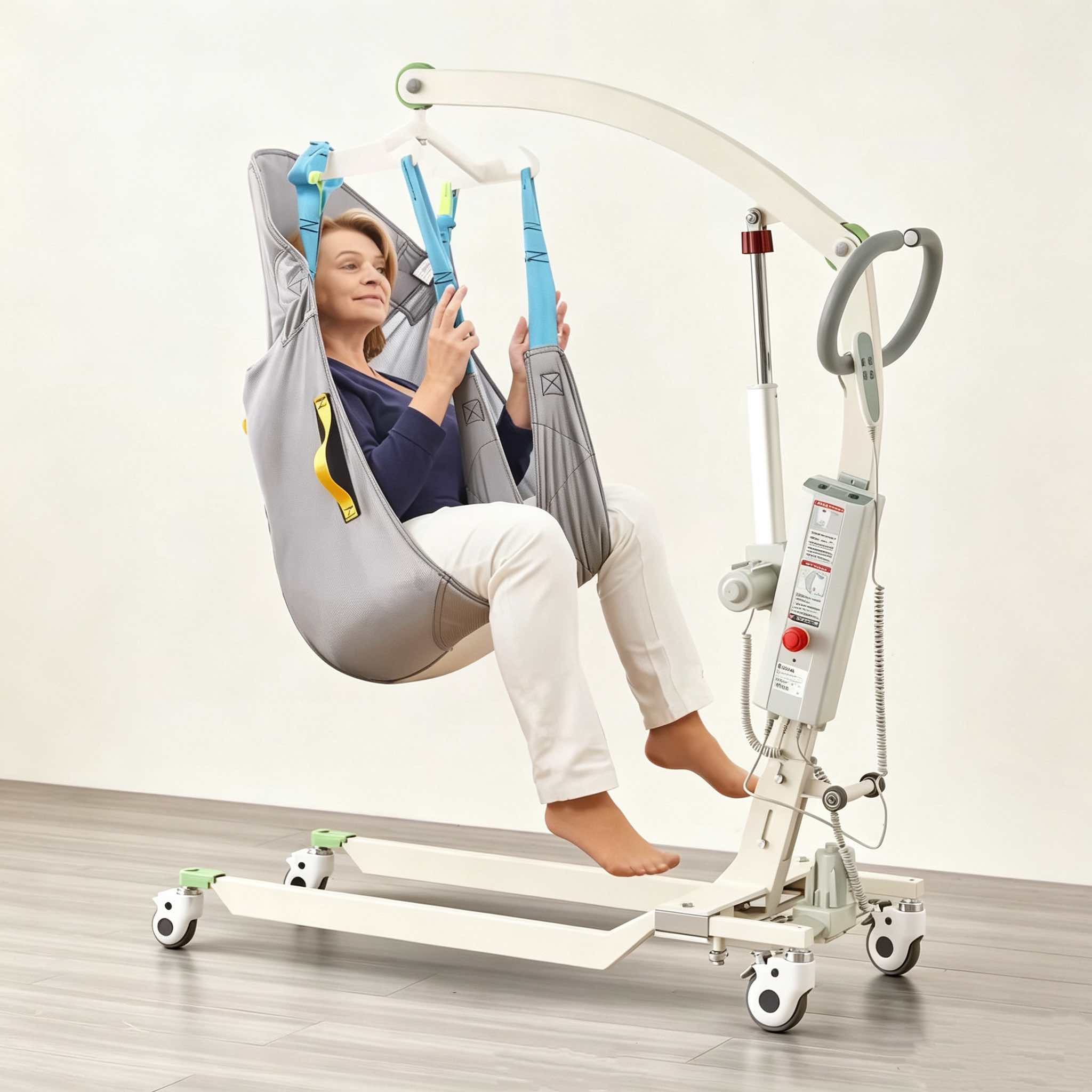

Electric Patient Transfer Lift rehabilitation device

Overview of electric patient lift

The Electric Patient Transfer Lift is designed to help patients move between beds, wheelchairs, toilets, and seating areas.  With remote hand controller, easy to operate it, with castors, easy to move to everywhere. It combines a stable frame, powered lifting system, secure sling support, and smooth-rolling casters to reduce physical strain during daily care.

Key Features

Secure Sling Support

The reinforced sling helps stabilize the user during lifting and transferring. It is designed for comfortable body support while keeping the caregiver in control of the process.

Powered Lift Operation

The electric patient transfer lifting device provides smooth, controlled vertical movement. Caregivers can operate the lift with simple controls, helping to reduce manual lifting and improve transfer efficiency.

Stable Steel Frame

The durable steel frame offers reliable support during use. The wide base and low center of gravity help improve stability when lifting, lowering, and moving the user.

Smooth-Rolling Casters

Equipped with four multi-directional casters, the transfer lift allows easy maneuvering around bedrooms, bathrooms, and care facilities. Some wheels support locking for added safety during operation.

Intuitive Control Panel

The control panel is designed for simple operation, with clear buttons for lifting, lowering, and emergency stop functions. This helps caregivers respond quickly and safely during the transfer process.

Comfortable Care Experience

The device focuses on both user comfort and caregiver convenience. By providing stable lifting and smooth movement, it helps make transfers more predictable and less stressful for all parties involved.
Typical Applications

• Bed to wheelchair

• Wheelchair to toilet

• Wheelchair to chair

• Room-to-room movement

• Daily care support at home or in care facilities

Specifications of Electric Patient Transfer Lift

1. Four-wheel, Foldable, Dual-motor

2. Front leg height of base: 13 cm

3. Base opening width: 90 cm

4. Lifting height range: 45–175 cm

5. Sling ground clearance: 0–75 cm

6. Upright column height: 125 cm

7. Electric control unit: RICHMAT controller

8. Battery: New explosion-proof lead-acid battery, 4.4 Ah

9. Motor output force: 8000 N

10. Lifting cycles on full charge: Approx. 80 times

11. Operating noise: ＜50 dB

12. Tested max load capacity: ＞220 kg

13. Outer package dimension: 128×55×45 cm

Usage Instructions of electric patient lift

1. Prepare the device
Check that the transfer lift is positioned close to the user and that the wheels are unlocked for movement.

2. Attach the sling correctly
Place the sling under the user’s body following the product instructions. Ensure it is properly positioned and securely connected to the lift hooks.

3. Check stability
Confirm that the user is comfortable and that all connections are secure before beginning the lifting operation.

4. Operate the lift
Use the control panel to raise or lower the user slowly. Keep movements smooth and avoid sudden changes in speed.

5. Move to the target location
Once lifted, carefully maneuver the device to the bed, wheelchair, chair, or toilet. Lock the wheels when positioning is complete.

6. Lower the user safely
Lower the user slowly and ensure they are properly seated or supported before removing the sling.
Safety Notes

Read the user manual before operation

1. Use only as directed for patient transfer and mobility support.
2. Ensure the sling is correctly attached before lifting.
3. Keep the device on a flat, stable surface during use.
4. Do not exceed the stated load capacity.
5. Regularly check the frame, casters, sling, and control functions for wear or damage.
