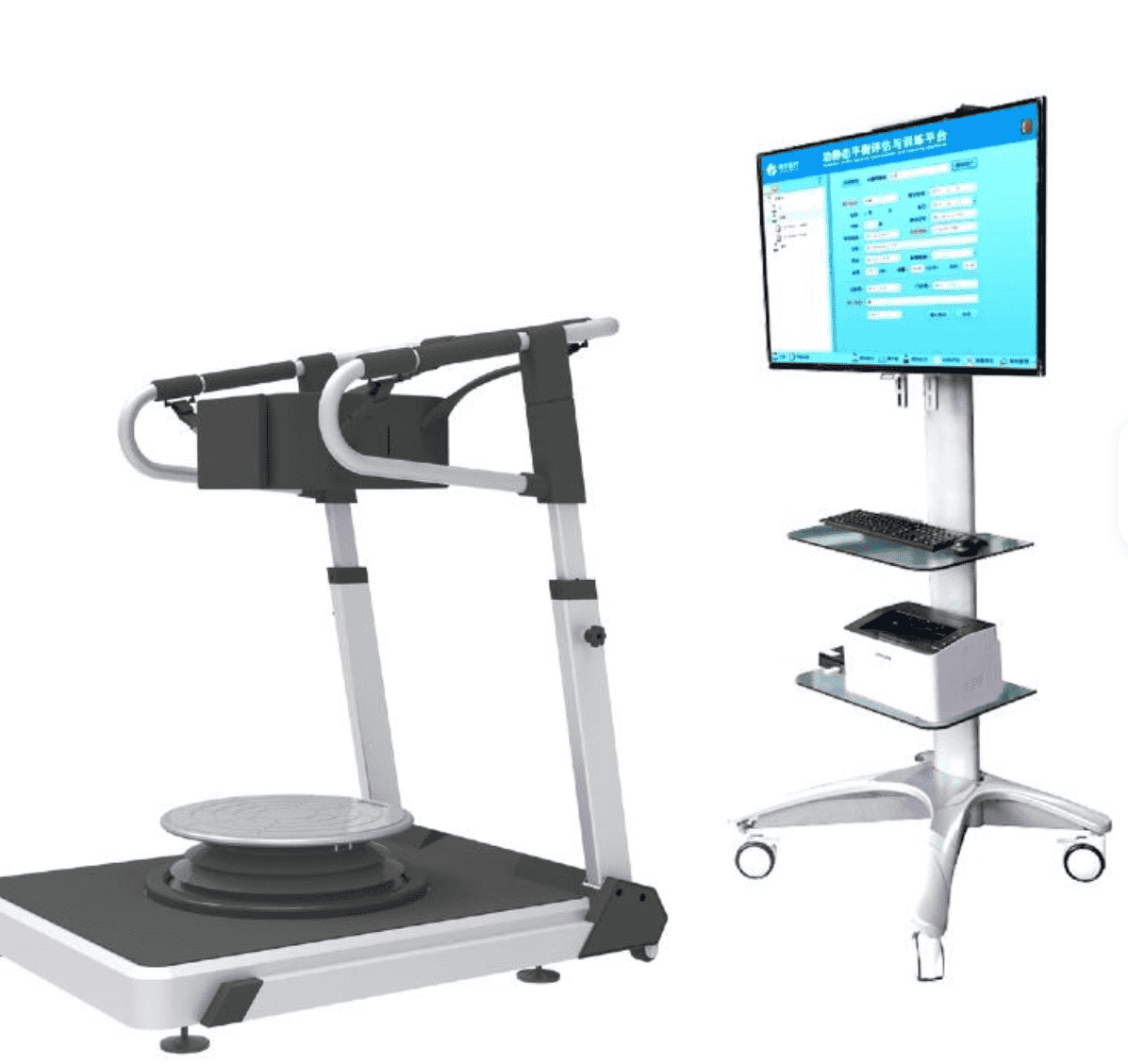

Intelligent walking balance feedback assessment rehabilitation equipment

Principle:

Intelligent walking balance feedback assessment rehabilitation equipment , integrating standing, sitting, trunk balance assessment and training. The static balance assessment captures and analyzes the trajectory of the patient’s center of gravity, i.e., the center of gravity trajectory diagram. The dynamic balance assessment records the changes in the patient’s inclination angle on the force plate to assess their balance function. Equipped with an intelligent software system, it provides real-time feedback on the inclination angle and load value, and combines situational interaction to guide patients to actively train, and conduct assessment and training on proprioception and motor control ability.
According to the patient’s condition, assessment and training of different postures such as single-leg, double-leg, standing,
sitting, etc. can be carried out, with real-time feedback of tilt angle and weight value. Combined with situational interaction,
the patient can be guided to actively train, and proprioception and motor control ability can be assessed and trained to slowly restore balance.

Parameters:

Maximum load :150kg
Maximum patient height :200cm
Tilt angle: 15°
Range of lifting rope: 0-900mm
Treatment time: 1-120min
Device size (mm) 2743mm×1145mm×1464mm

Indications:

1. Nervous system diseases: limb paralysis caused by cerebrovascular accident, brain trauma, brain tumor, brain
inflammation, cerebral palsy, Parkinson’s disease, paraplegia after spinal cord injury due to various reasons, multiple
sclerosis, lower limb muscle weakness caused by peripheral nerve injury.
2. Bone and joint diseases and sports trauma recovery period: early lower limb weight-bearing training after lower limb
joint replacement, functional recovery training after bone and joint disease surgery, training to relieve pain and promote
functional recovery of bone and joint diseases; early recovery training for sports injuries such as tendon and ligament
rupture.
3. Spinal and lumbar disc lesions: commonly used for aerobic training of patients with lumbar disc herniation,
overweight, and severe joint degenerative lesions, and training for patients with low back and leg pain to recover from
walking.

Features:

• One-click switching between dynamic and static training
Dynamic training and static training can be switched with one click, and different hardness can be selected for training
according to the patient’s condition
• One-stop evaluation and training
The equipment has a variety of training and evaluation methods, and provides training data reports according to the
patient’s training status
• Multi-position training methods
The equipment can be trained and evaluated in a variety of ways such as standing, sitting, single leg, and stride
• Plare pressure
Add plantar pressure display function to more conveniently determine the force position of the plantar
• Add scenario interaction function
Add scenario interaction suitable for patient training, mobilize the enthusiasm of patients, let patients actively partici-
pate, and enable patients to recover happily in the game
• Patient management and treatment report
The patient information storage and data analysis system can analyze and integrate the patient’s treatment information
to provide reference for subsequent patient training
